Modular Tile Insert Drain Kit - Grey

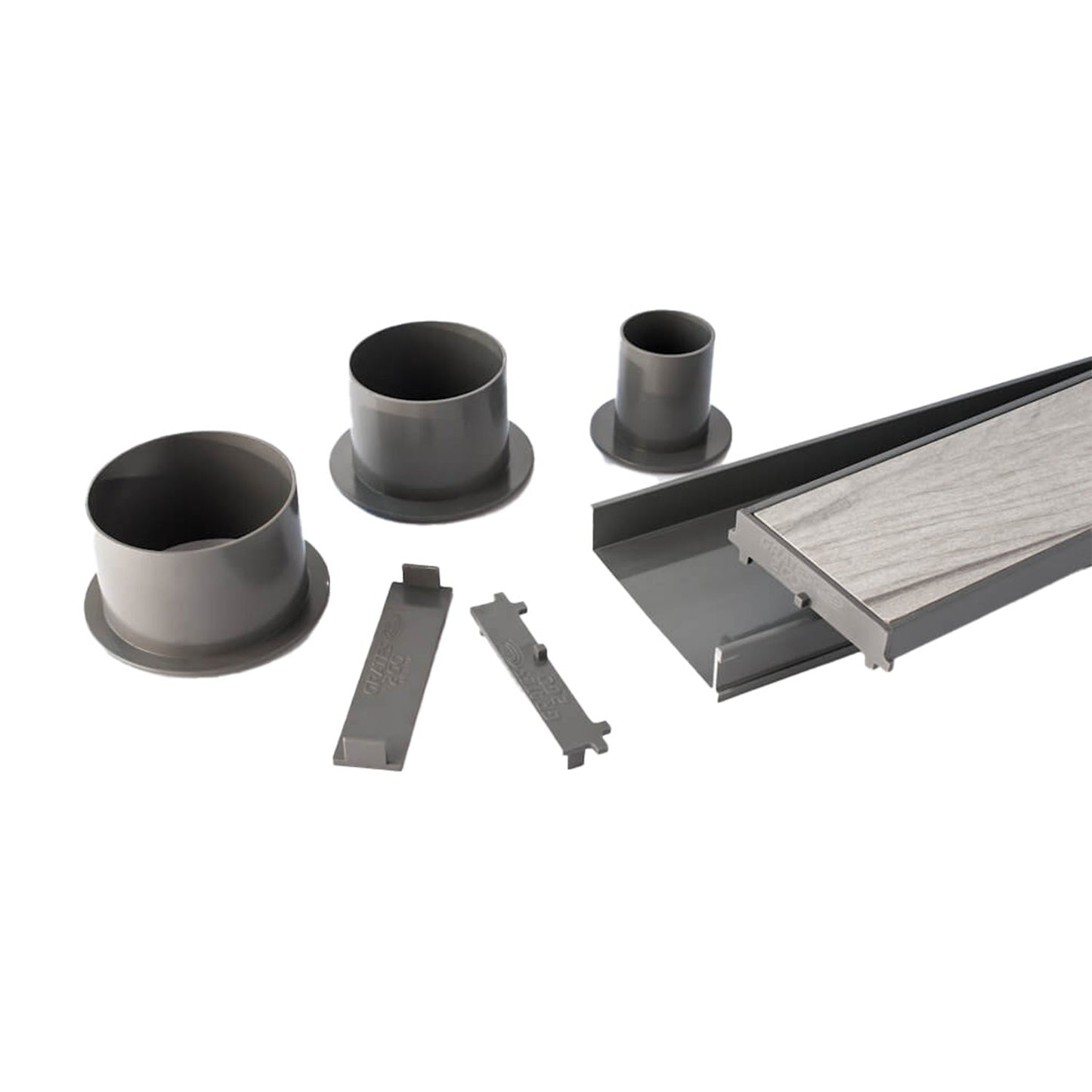

Modular Tile Insert Drain Kit - Grey
Bunnings I/N:
Grates 2 Go I/N:
A tile insert drain is exactly as the name suggests. The floor tile is installed directly into the channel and gives your drain a seamless look. Our standard depth insert tray suits any tile up to 10mm deep plus adhesive.
Our contemporary linear shower grate and channel is available in an easy do-it-yourself modular kit. Our Tile Insert Modular UPVC kits are designed to be cut down and installed onsite by a qualified installer. They are supplied with everything in the kit that you require to make up a tile insert channel to a maximum length of 1250mm.

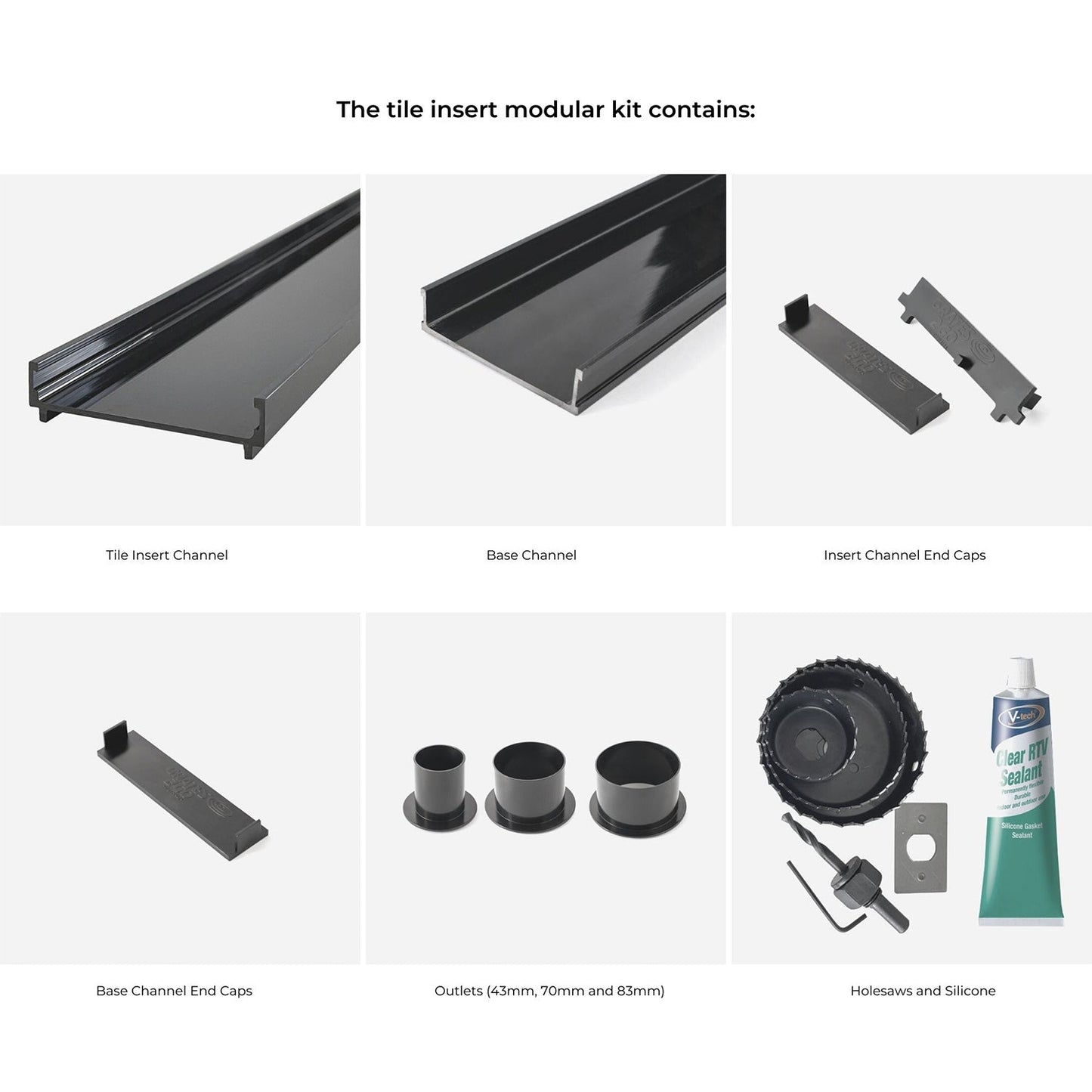

The kit contains:
- UPVC Base Channel
- UPVC Tile Insert Tray
- UPVC Base Channel End Caps (2)
- UPVC Tile Insert Tray End Caps (2)
- UPVC Outlets (43mm, 70mm and 83mm)
- Hole Saw
- Silicone Sealant

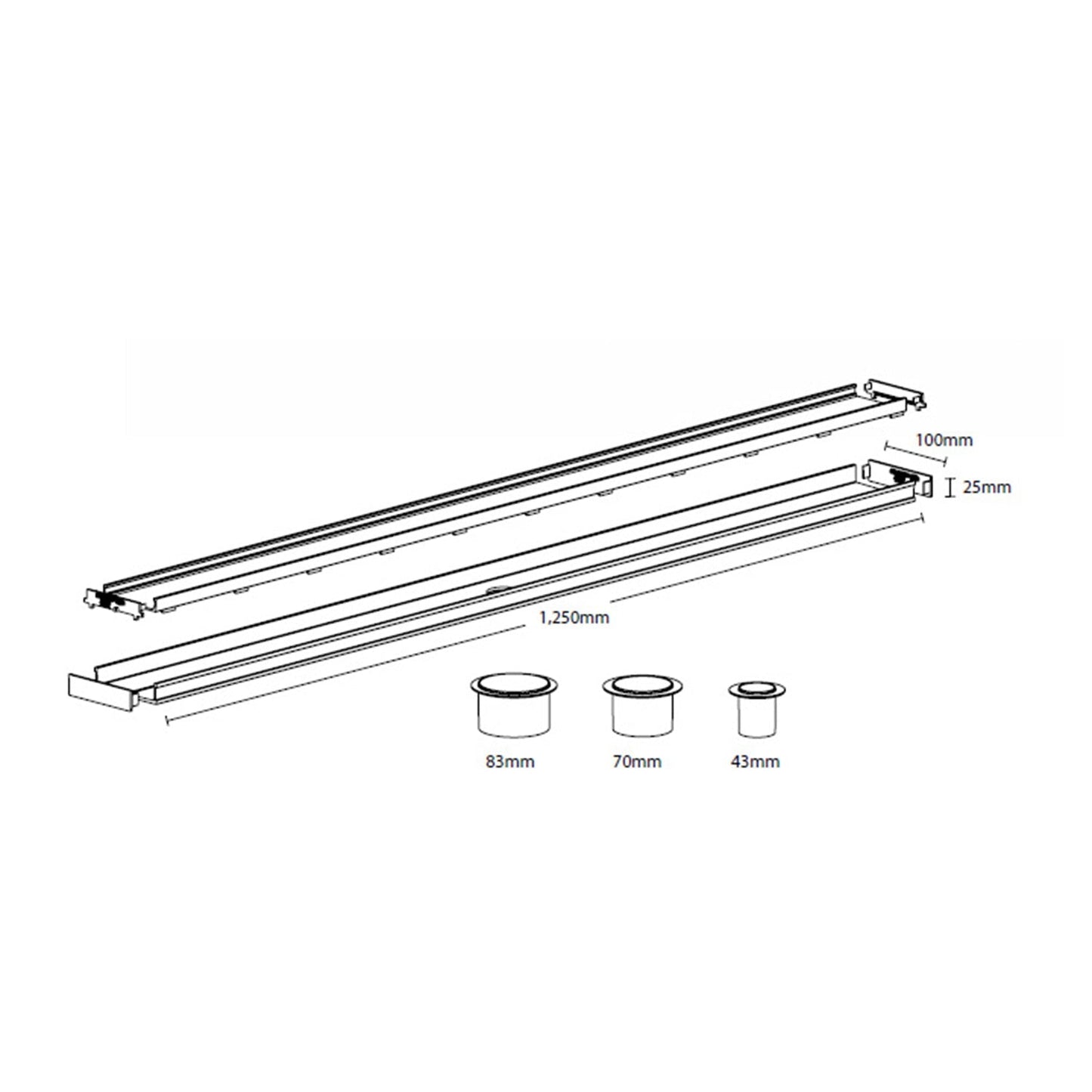

Specifications:
Width | 100mm |
Length | 1250mm |
Depth | 25mm |
Outlet Sizes | 43mm, 70mm, 83mm |
Composition | UPVC |
![Modular Tile Insert Drain Kit - Grey](http://grates2gomodular.com.au/cdn/shop/files/Tile-Insert-Modular-Kit-Grey_679ed9ed-157a-4b7e-8a3f-e407804562f8.jpg?v=1698621731&width=1445)
![Modular Tile Insert Drain Kit - Grey](http://grates2gomodular.com.au/cdn/shop/files/Tile-Insert-Modular-Kit-Contents_fe5dac9f-ed4b-45f8-85d5-25b77b84c09b.jpg?v=1698621731&width=1445)
![Modular Tile Insert Drain Kit - Grey](http://grates2gomodular.com.au/cdn/shop/files/Tile-Insert-Modular-Kit-Drawing_9523ae99-2433-4936-9d08-91609959825c.jpg?v=1698621732&width=1445)
